Leaked iPad 3 Components Reveal New Internals, But No New Design [Exclusive]

Leaked iPad 3 Components Reveal New Internals, But No New Design [Exclusive]

Images of leaked iPad 3 components hot off the factory floor have been provided to Cult of Mac. They reveal that the internal components of Apple’s third-generation iPad are significantly different to those features in its first- and second-generation tablet. However, its design seems to remain almost the same.

The images we have, which have been provided by iPatch, a leading iPhone, iPad, and iPod repair specialist here in the U.K., show various components from the iPad 3, all of which are largely different to those that feature in the iPad 2. We also have images of an iPad 3 rear casing, which suggest Apple has not given its next-generation tablet a redesign.

Leaked iPad 3 Components Reveal New Internals, But No New Design [Exclusive]

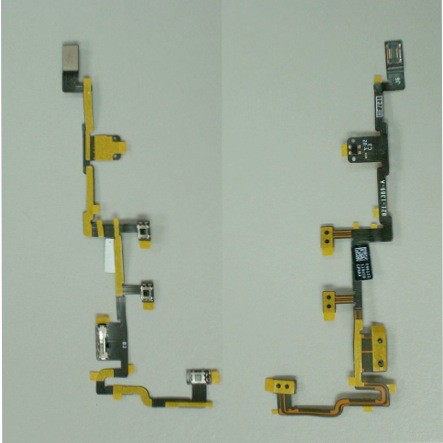

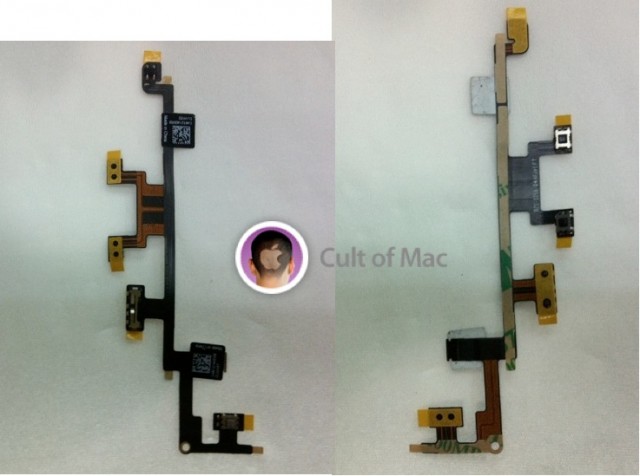

The image above is a flex cable containing the sleep/wake button, the volume buttons, and the mute switch. Below is the same component from the iPad 2. As you can see, they both feature different designs, though it would appear that the layout for these buttons remains largely the same.

Leaked iPad 3 Components Reveal New Internals, But No New Design [Exclusive]

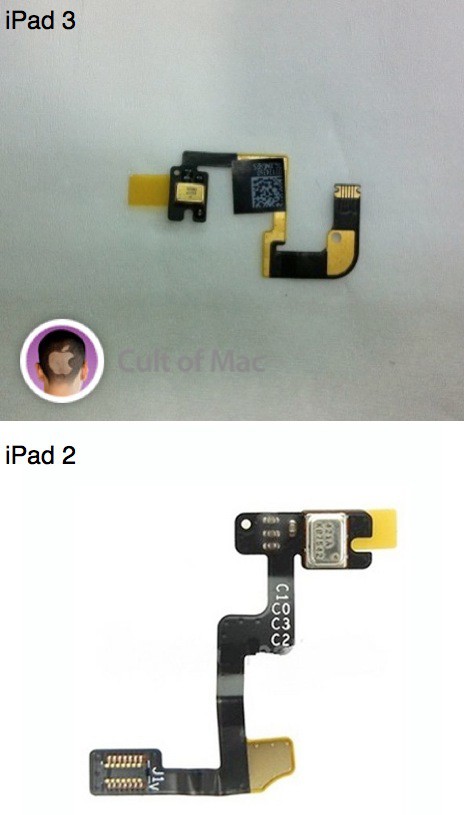

Below we have the iPad 3’s microphone, which again, is significantly different to that featured in the iPad 2, with a completely different connector. This is the same component that leaked back in December.

Leaked iPad 3 Components Reveal New Internals, But No New Design [Exclusive]

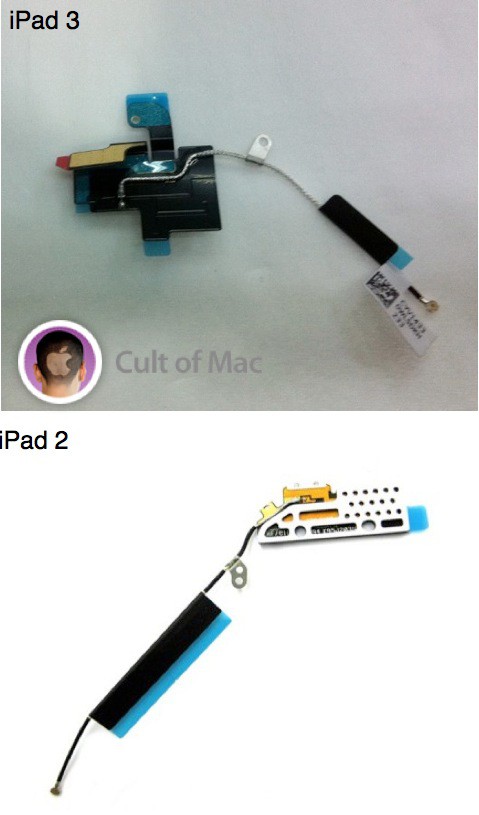

The biggest difference between these internals for the iPad 3 and the iPad 2 appears to be with the Wi-Fi components for the new device. As you can see from the image below, there’s a huge difference in design here.

Leaked iPad 3 Components Reveal New Internals, But No New Design [Exclusive]

One of the most interesting changes is to the iPad’s headphone jack. As you can see below, the iPad 3’s headphone jack is different again, with what appears to be another connector on its bottom end. iPatch believes this connector is for a dock connector, which would suggest that the iPad 3’s headphone jack will be at the bottom, alongside the dock connector, similar to the iPod touch. However, the images we have of the iPad 3’s rear panel conflict with that theory.

As you can see from the picture below, there’s no space for a headphone jack at the bottom of this device.

Leaked iPad 3 Components Reveal New Internals, But No New Design [Exclusive]

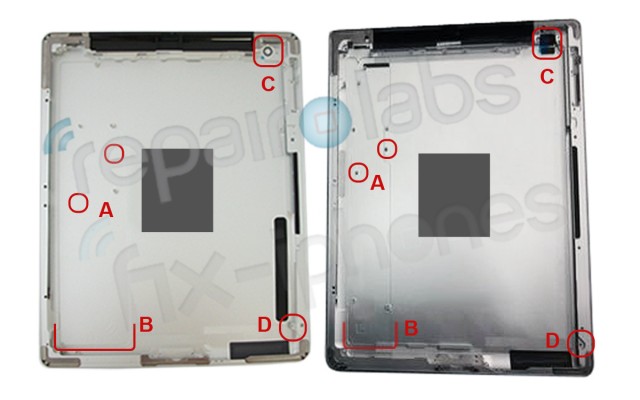

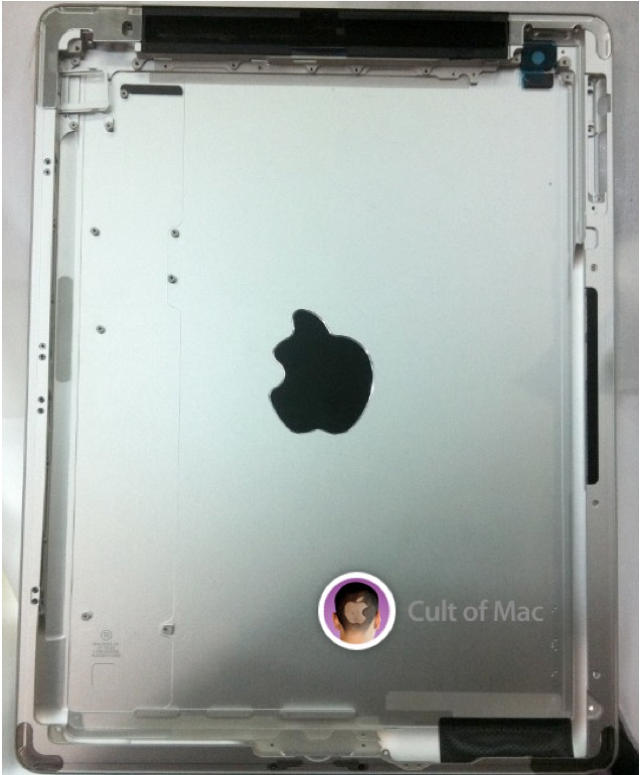

The image above is identical to that leaked yesterday by RepairLabs (below). As you can see, it features the same screw holes on the left-hand side, which are laid out differently to the iPad 2. As RepairLabs points out, the iPad 3’s rear panel seems to leave less space for the logic board, and more for the tablet’s battery.

Leaked iPad 3 Components Reveal New Internals, But No New Design [Exclusive]

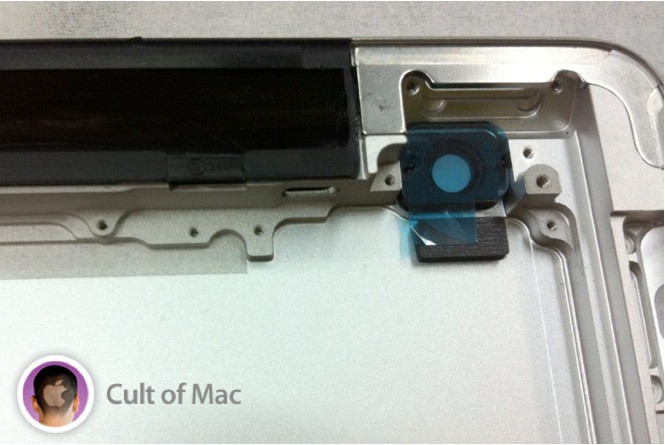

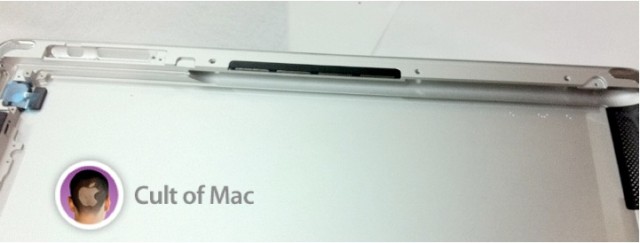

Our images also provide a more detailed look at the new device’s camera port, which is expected to house a much-improved snapper.

These images strengthen reports that claim the iPad 3 will boast the same design as its predecessor, but with improved internals. The third-generation device is expected to be an “incremental” upgrade, much like the iPhone 4S is to the iPhone 4, with Apple’s A6 quad-core processor, a Retina display, and a better rear-facing camera.

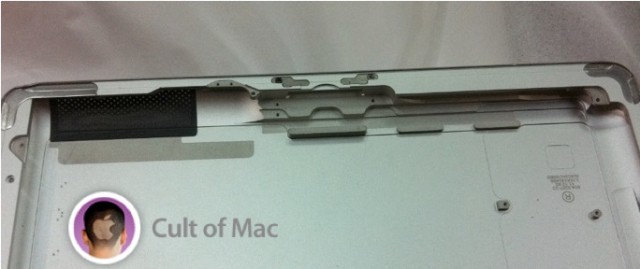

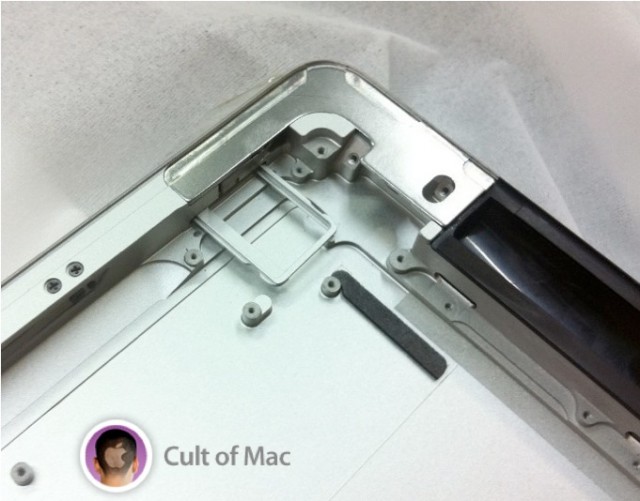

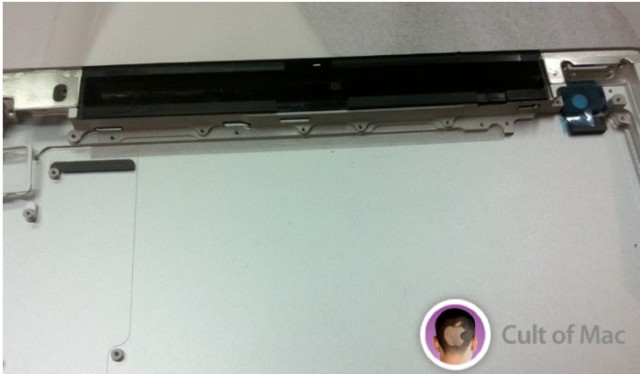

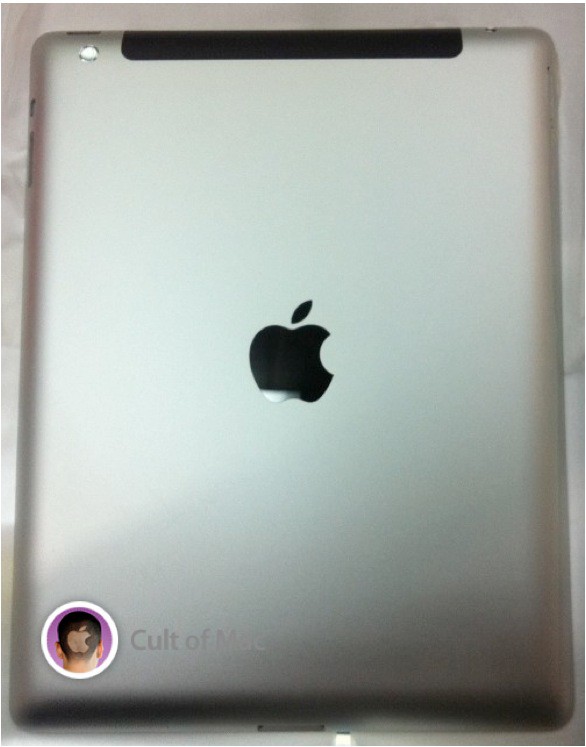

We have more images of the iPad 3’s rear panel below.

Leaked iPad 3 Components Reveal New Internals, But No New Design [Exclusive]

Leaked iPad 3 Components Reveal New Internals, But No New Design [Exclusive]

Leaked iPad 3 Components Reveal New Internals, But No New Design [Exclusive]

Leaked iPad 3 Components Reveal New Internals, But No New Design [Exclusive]

Leaked iPad 3 Components Reveal New Internals, But No New Design [Exclusive]
