A how-to on enabling HIDPI modes in Lion.
Show More Show Less View Video Transcript
0:10
hey everyone today I'm going to show you
0:11
how you can enable High DPI display
0:14
modes in Mac OS 10 line now this is
0:17
something similar to how the iPhone uses
0:20
the Rena display with the doubled
0:22
resolution so basically there's this
0:24
option that you have to tweak and once
0:27
you do that you'll be able to use high
0:30
DPI display modes in line now of course
0:33
at this point since we don't have Retina
0:35
Display Max everything is twice as large
0:38
on the screen so it's not exactly a very
0:40
practical thing at this point but it's
0:42
really something neat to try because it
0:44
is kind of neat to see what Apple's
0:46
doing in the way of making Retina
0:48
Display Max so don't expect to get a lot
0:50
of functionality out of this this is
0:52
more of just a neat little tweak you can
0:54
try out so the first thing we're going
0:56
to need is xcode from the Mac App Store
0:59
so if you go up to to your app logo menu
1:01
and select App Store you want to go over
1:04
to the search field and type in xcode
1:07
and you can see X code right here and I
1:09
can select this now it is free in the
1:11
Mac App Store but the biggest problem is
1:15
that it is 1.68 GB so it's not something
1:19
you're going to really want to download
1:21
and expect to have finished if you're on
1:23
a slow wireless network and if you have
1:26
a limited data connection it's just
1:28
something you want to think about before
1:30
you go through the trouble of
1:31
downloading xcode so once you download
1:33
xcode you'll be given an installer and
1:36
you'll be able to install xcode and
1:38
that's a process that I've already done
1:40
it does take a little bit of time and
1:41
it's pretty self-explanatory so it's
1:43
nothing I really need to cover here so
1:45
after xcode is installed you can open up
1:47
a new finder window and from there go to
1:50
Macintosh HD and then there'll be a new
1:53
developer folder right here and you can
1:55
open that up and in here there'll be an
1:57
applications folder so go into that and
2:00
then from there a graphics tools folder
2:02
and then in this Graphics tools folder
2:04
there's a whole bunch of different
2:05
Graphics based apps but what you'll want
2:07
to do is open up quartz debug when you
2:10
open it up you're not really going to
2:11
see anything on the screen except for
2:13
this little window that'll be floating
2:16
right here but if you go up to the
2:17
window menu under quartz debug and you
2:21
select UI
2:23
resolution this little window will pop
2:25
up right down here and all you need to
2:27
do is check this enable High
2:31
DPI display modes option then you're
2:33
going to get this message that you
2:35
should log out for your changes to take
2:38
effect and in fact you have to log out
2:40
all users that are on your computer for
2:42
this to work so I'm going to cut the
2:43
video right here and log out and then
2:46
I'll log back in and we'll go in and see
2:49
how it works so now that I've logged out
2:51
and logged back in what I can do now is
2:53
go up to the Apple logo menu and select
2:56
system preferences now in system
2:58
preferences all I have to do is go to
3:00

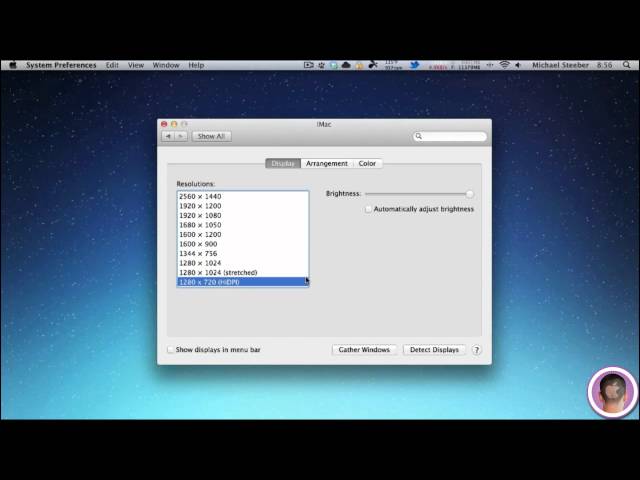

the displays tab now what you can see
3:02
here is in addition to the normal
3:04
displays I have a couple different High
3:07
DPI modes and you can see it's in
3:09
parenthesis right afterwards so let's
3:12
try something like 1280 x 720 High
3:18
DP so you can see here now this is the
3:20
1280 x 720 High DPI mode running on my
3:24
iMac here and you can see that
3:26
everything looks a lot clearer uh it it
3:29
just overall looks nicer and uh
3:32
everything is very high resolution so if
3:35
you imagine a Mac with the double the
3:36
resolution of this everything would
3:38
display at the normal size as you would
3:41
see on a Mac today now there are some
3:43
flaws of this as you can see in my menu
3:45
bar not all the icons support the 2x
3:48
resolution uh most of the Native OS 10
3:51
ones do as you can see here like volume
3:54
and the time but most of the third party
3:57
apps do not this is also true with some
3:59
some graphics like the iCloud logo in
4:02
system preferences is not at the 2x
4:05
resolution While most everything else is
4:07
and similarly if you go up to the app
4:09
logo menu and select about this Mac you
4:12
can see that the app logo is not high
4:15
resolution either and this is a pretty
4:17
common Trend with most applications as
4:19
you can see the dock looks very nice at
4:22
this resolution uh but things like
4:24
Stacks do
4:25
not a lot of the Native applications do
4:29
tend to pretty decent such as calculator
4:31
it looks actually incredibly nice at
4:35
this 2x resolution other applications
4:37
like iel look generally awful at this 2x
4:41
resolution as you can tell that none of
4:43
the user interface elements other than
4:45
the text supports the 2x display modes
4:48
so there's how you can enable High DPI
4:51
display modes on your Mac running OS 10
4:54
line and once again this is not
4:56
something that is good for day-to-day
4:57
use uh it's more just of a a fun thing
5:00
to try out kind of get a look into what
5:01
Apple might be doing in the future for
5:04
Retina Display Max as always if you have
5:06
anything you'd like to see me do a how
5:07
to on make sure to send me an email I
5:09
hope you found this video useful and
5:10
thank you for
5:16
watching
